Machine cables are essential components in various industrial applications, serving to transmit power, signals, and data between different parts of machinery. One of the critical parameters that define a machine cable’s performance and suitability for a specific task is its diameter. The diameter of a machine cable plays a vital role in determining factors such as current-carrying capacity, flexibility, installation space requirements, and resistance to external forces. In this comprehensive guide, we will delve into all aspects related to the diameter of machine cables, providing you with the information you need to make informed decisions when selecting and using these cables.
The diameter of a machine cable refers to the distance across the cable’s cross-section, measured from one outer edge to the opposite outer edge, passing through the center. It is typically expressed in millimeters (mm) or inches (in), with millimeters being the more commonly used unit in industrial settings. This dimension is not just a simple physical attribute; it has a direct impact on the cable’s functionality and performance.

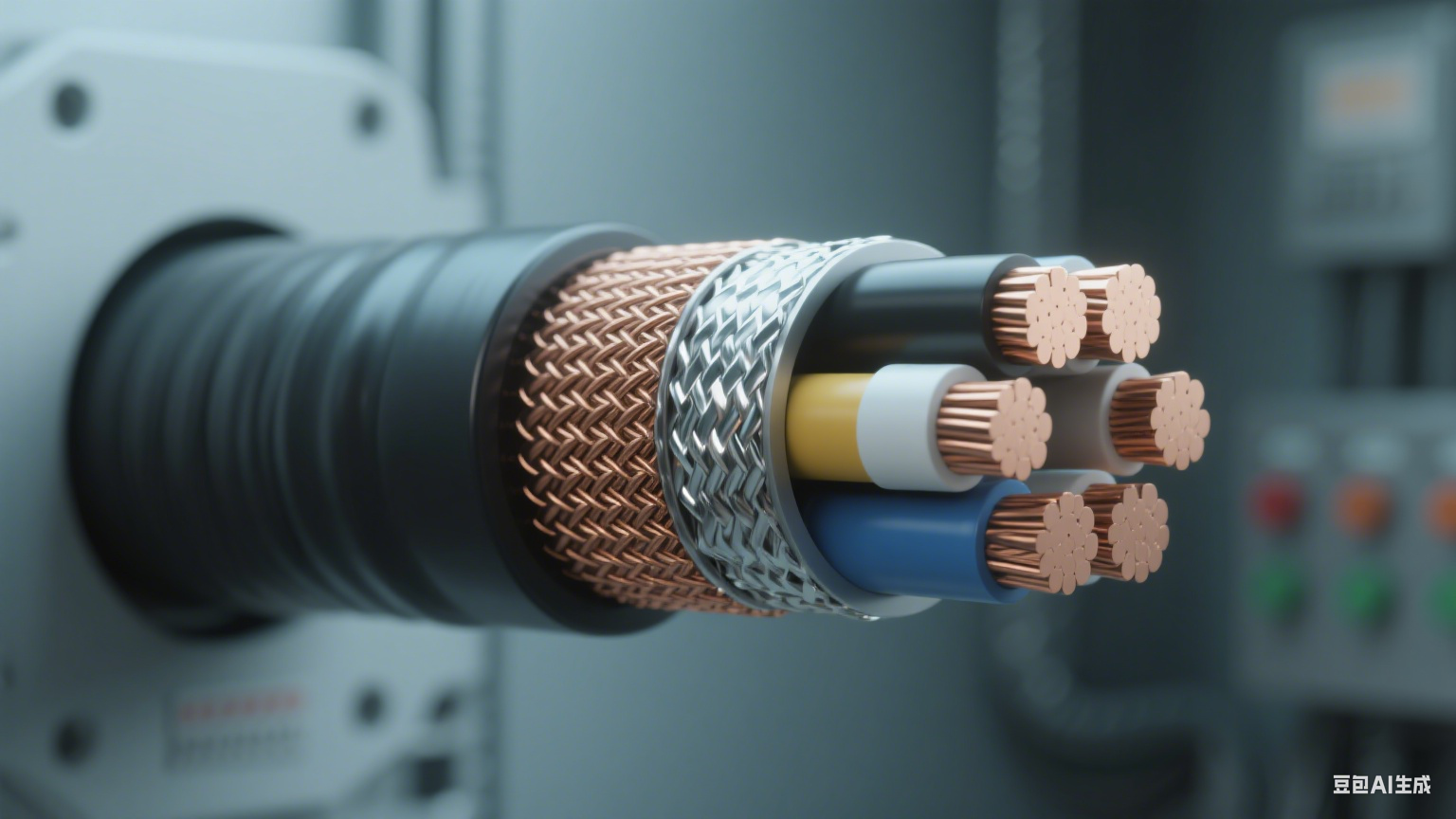

A machine cable consists of several components, including conductors, insulation, shielding (if present), and an outer jacket. Each of these components contributes to the overall diameter of the cable. The conductors, which are responsible for carrying the electrical current or signal, are usually made of copper or aluminum due to their excellent conductive properties. The number and size of the conductors significantly influence the cable’s diameter. For example, a cable with multiple large-diameter conductors will have a larger overall diameter compared to one with fewer, smaller conductors.
The insulation layer surrounds each conductor, preventing electrical leakage and short circuits. The thickness of the insulation depends on the voltage rating of the cable; higher voltage cables require thicker insulation to withstand the higher electrical stress, thus increasing the cable’s diameter. Shielding, such as braided copper or aluminum foil, is used to protect the cable from electromagnetic interference (EMI) and radio frequency interference (RFI). The addition of shielding adds to the cable’s diameter as well. Finally, the outer jacket, made from materials like PVC, rubber, or polyurethane, provides mechanical protection to the internal components. The thickness and material of the jacket also contribute to the overall diameter.
**
Several factors influence the diameter of a machine cable, and understanding these factors is crucial for selecting the right cable for a particular application.
The size and number of conductors are primary factors. Conductors are sized according to standard gauge systems, such as the American Wire Gauge (AWG) or the metric system. Larger gauge numbers indicate smaller conductor diameters, and vice versa. For instance, a 10 AWG conductor is larger than a 16 AWG conductor. If a cable needs to carry a high current, larger conductors are required to minimize resistive losses and prevent overheating, which increases the cable’s diameter. Additionally, cables with more conductors, such as those used for multi – signal transmission, will have a larger diameter to accommodate all the conductors within the insulation and jacket.
As mentioned earlier, the voltage rating of the cable dictates the thickness of the insulation. Cables designed for low – voltage applications (e.g., 12V, 24V) have thinner insulation layers, resulting in a smaller diameter. On the other hand, high – voltage cables (e.g., 480V, 600V) require thicker insulation to prevent arcing and ensure safety, leading to a larger diameter. The type of insulation material can also affect the diameter. Some materials offer better insulation properties per unit thickness, allowing for a slightly smaller diameter while maintaining the same voltage rating.
Shielding is necessary in environments where EMI or RFI is a concern, such as in factories with numerous electrical devices or near radio transmitters. Braided shielding, which consists of interwoven metal strands, provides excellent protection but adds more to the cable’s diameter compared to foil shielding, which is a thin layer of metal. The density of the braid (the percentage of the cable’s surface covered by the braid) also affects the diameter; a higher density braid offers better protection but results in a larger diameter.
The outer jacket must be durable enough to withstand the environmental conditions of the application, such as exposure to chemicals, oils, abrasion, extreme temperatures, or moisture. Different materials have varying levels of resistance. For example, polyurethane jackets are highly resistant to abrasion and oils but may be thicker than PVC jackets for the same level of protection. In applications where mechanical stress is high, a thicker jacket is needed, increasing the cable’s diameter. Conversely, in applications where space is limited, a thinner jacket material with sufficient protection properties may be chosen to keep the diameter small.
Selecting the correct diameter for a machine cable is of utmost importance to ensure optimal performance, safety, and longevity of the cable and the machinery it is used in.
The diameter of the conductors within the cable directly affects its current – carrying capacity. A larger diameter conductor has a lower resistance, allowing it to carry more current without overheating. If a cable with a diameter too small for the required current is used, it will heat up excessively, which can degrade the insulation and jacket, leading to short circuits, equipment failure, and even fire hazards. On the other hand, using a cable with a larger diameter than necessary for the current load results in unnecessary costs, increased weight, and reduced flexibility.
The diameter of the cable impacts its flexibility. Smaller diameter cables are generally more flexible, making them easier to install in tight spaces, around corners, or in applications where the cable needs to move frequently (e.g., robotic arms). Larger diameter cables are stiffer and may require more space for installation. They can be challenging to route through narrow channels or bend without causing damage to the internal components. Choosing a cable with the right diameter ensures that installation is feasible and that the cable can withstand the bending and movement required during operation.
A cable with an appropriate diameter, considering the outer jacket thickness, provides adequate mechanical protection. In harsh industrial environments, where the cable may be subjected to impact, abrasion, or crushing, a larger diameter with a thick, durable jacket can better resist these forces, protecting the internal conductors and insulation. A cable that is too small in diameter may not have sufficient jacket thickness to withstand such stresses, leading to premature failure.
Machine cables are often connected to various connectors, terminals, and equipment. These components are designed to accommodate cables of specific diameters. Using a cable with a diameter that is too large may prevent it from fitting into the connector or equipment, requiring modifications or the use of adapters, which can introduce additional points of failure. A cable that is too small may not make a secure connection, leading to poor electrical contact, signal loss, or intermittent operation. Ensuring the cable diameter matches the requirements of the connectors and equipment is essential for reliable performance.
Accurately measuring the diameter of a machine cable is necessary to ensure it meets the specifications for a particular application. Here are the common methods and tools used for measuring cable diameter:
Calipers are the most commonly used tools for measuring cable diameter. Digital calipers are preferred for their accuracy and ease of use. To measure the diameter using calipers:
Micrometers offer even higher precision than calipers, making them suitable for measuring small diameter cables or when extremely accurate measurements are required. The process is similar to using calipers:
In industrial settings, laser diameter gauges are used for high – speed, non – contact measurement of cable diameters during production. These gauges emit a laser beam that is partially blocked by the cable, and the shadow is detected by a sensor. The system calculates the diameter based on the size of the shadow, providing real – time measurements with high accuracy. This method is ideal for quality control in manufacturing facilities.
**
This 500500px WEBP image depicts a person using digital calipers to measure the diameter of a machine cable, showing the correct measurement technique.*
Selecting the right diameter for a machine cable involves considering the specific requirements of your application. Here are the key steps to follow:
Calculate the maximum current that the cable will need to carry. This is based on the power consumption of the machinery or equipment it will be connected to. Refer to electrical standards and cable ampacity charts, which provide the current – carrying capacity for different cable sizes and insulation materials. Choose a cable with a conductor diameter that can handle the calculated current, allowing for a safety margin (typically 10 – 20%) to account for unexpected current spikes.
Assess the space available for installation. Measure the width of the channels, conduits, or cable trays where the cable will be routed. Ensure that the cable’s diameter is small enough to fit without being crushed or kinked. If the cable needs to bend around corners, consider the minimum bend radius specified by the cable manufacturer. A larger diameter cable may have a larger minimum bend radius, requiring more space for bending.
If the cable will be subjected to frequent movement, such as in automated machinery or robotics, flexibility is crucial. Smaller diameter cables with flexible conductors and jackets are better suited for these applications. However, ensure that the smaller diameter does not compromise the current – carrying capacity or mechanical protection.
The environmental conditions, such as exposure to chemicals, oils, high temperatures, or moisture, will influence the choice of jacket material and thickness, which in turn affects the cable’s diameter. For example, in a chemical plant, a cable with a thick, chemical – resistant jacket may be needed, resulting in a larger diameter. In a clean room environment where space is limited, a thinner jacket with appropriate cleanliness properties may be preferred.
Review the specifications of the connectors, terminals, and equipment that the cable will be connected to. These components will have a maximum and minimum cable diameter range that they can accommodate. Ensure that the selected cable’s diameter falls within this range to ensure a proper and secure connection.
Machine cables are available in a wide range of diameters to suit various applications. Here are some common diameter ranges and their typical uses:
These cables are often used in applications where space is limited and low current or signal transmission is required. Examples include:
They are highly flexible and easy to route through tight spaces.
Medium diameter cables are versatile and find use in a variety of industrial applications, such as:
They offer a balance between current – carrying capacity, flexibility, and mechanical protection.
Large diameter cables are designed for high – current applications and harsh environments, including:
These cables have thick conductors, insulation, and jackets to handle high currents and provide robust protection.
When it comes to machine cables, FRS Company stands out as a leading manufacturer with a reputation for producing high – quality cables that meet the diverse needs of industrial applications. We understand the critical role that cable diameter plays in ensuring optimal performance, and our extensive range of machine cables is designed with this in mind.
At FRS, we offer machine cables in a wide spectrum of diameters, from small, flexible cables for intricate control systems to large, heavy – duty cables for high – current power transmission. Our cables are crafted using premium materials, including high – conductivity copper conductors, high – grade insulation, and durable outer jackets, ensuring that each cable meets or exceeds industry standards for current – carrying capacity, flexibility, and mechanical protection.
We recognize that every application is unique, which is why we provide customized cable solutions. Our team of experienced engineers works closely with customers to understand their specific requirements, including current load, installation space, environmental conditions, and flexibility needs. Based on this information, we can recommend or design a machine cable with the perfect diameter and specifications to ensure reliable and efficient operation.
In addition to our commitment to quality, FRS Company prides itself on strict quality control measures throughout the manufacturing process. We use advanced laser diameter gauges to ensure that each cable’s diameter is precise and consistent, meeting the exact specifications of our customers.
Whether you need a standard diameter machine cable for a common industrial application or a custom – sized cable for a unique project, FRS Company has the expertise and capabilities to deliver. Trust us to provide you with high – quality machine cables that offer superior performance, durability, and value. Contact us today to learn more about our products and services.
