Machine Vision Cable Compatibility with AI Systems: Your Seamless Int...

Integrating powerful machine vision cameras with cutting-edge AI processing systems promises revolutionary insights, but the physical connection – the cables – often becomes a stumbling block. Are your cables silently choking the flow of data to your hungry AI? This guide demystifies machine vision cable compatibility with AI systems, ensuring your data flows freely for optimal AI performance.

The Problem: A Bridge Between Two Worlds

Traditional machine vision systems frequently use specialized cameras and cables:

• ​Industrial Interfaces: Camera Link (HS/Full), CoaXPress (CXP-6, CXP-12, CXP-20), GigE Vision over specialized cabling.
• ​High Requirements: These cables deliver high bandwidth, real-time data, low latency, and often power (PoCXP, PoCL).

AI inference systems, however, often reside on different hardware:

• ​GPU Servers & Workstations: Typically equipped with standard ports like USB 3.x/4, 1/2.5/10/25/40/100 Gigabit Ethernet (RJ45), PCIe slots.
• ​Edge AI Appliances: May have MIPI CSI-2, USB, or limited GigE ports.

This mismatch creates a fundamental gap: ​How do you connect a Camera Link or high-speed CoaXPress camera directly to a standard GPU server port? The cables themselves aren’t directly compatible.

Solutions: Building the Compatibility Bridge

Achieving seamless integration requires understanding and bridging this gap:

1. ​Frame Grabbers: The Essential Translators
   • ​Function: These PCIe cards (installed in the AI server/PC) act as dedicated hardware translators. They have ports specifically designed for the camera cable (e.g., Camera Link Deca port, CoaXPress Quad BNC ports).
   • ​Compatibility: A Camera Link frame grabber makes your Camera Link cable compatible with the AI server it’s plugged into. Similarly, a CoaXPress frame grabber handles CoaXPress streams.
   • ​Why Critical: They offload the complex task of receiving high-speed, uncompressed vision data streams directly from the camera via its native cable, translating it into data the server’s CPU/GPU can efficiently process via the PCIe bus. They are usually mandatory for non-GigE/ USB cameras.
2. ​Interface Converters / Adapters (Selective Use):
   • ​Function: Convert the electrical/physical signal from one interface standard to another before it reaches the AI system. Use with caution and vendor guidance.
   • ​Examples:
     • ​Camera Link to USB 3.0: Converts the Camera Link signal at the camera end to output over a standard USB cable. Bandwidth limitations apply.
     • ​CoaXPress to Fiber: Extends reach or converts coax signal to optical fiber, which might then need a fiber receiver module compatible with the AI system.
   • ​Pros/Cons: Can simplify cabling runs or enable longer distances. Can introduce latency, complexity, and potential bottlenecks. Verify bandwidth and compatibility thoroughly.
3. ​Leveraging Native GigE Vision or USB3 Vision:
   • ​Simplest Path: Choose cameras supporting ​GigE Vision (using standard Cat 5e/6/6a cables with RJ45 connectors) or ​USB3 Vision. Most modern AI servers have multiple GigE ports and USB ports.

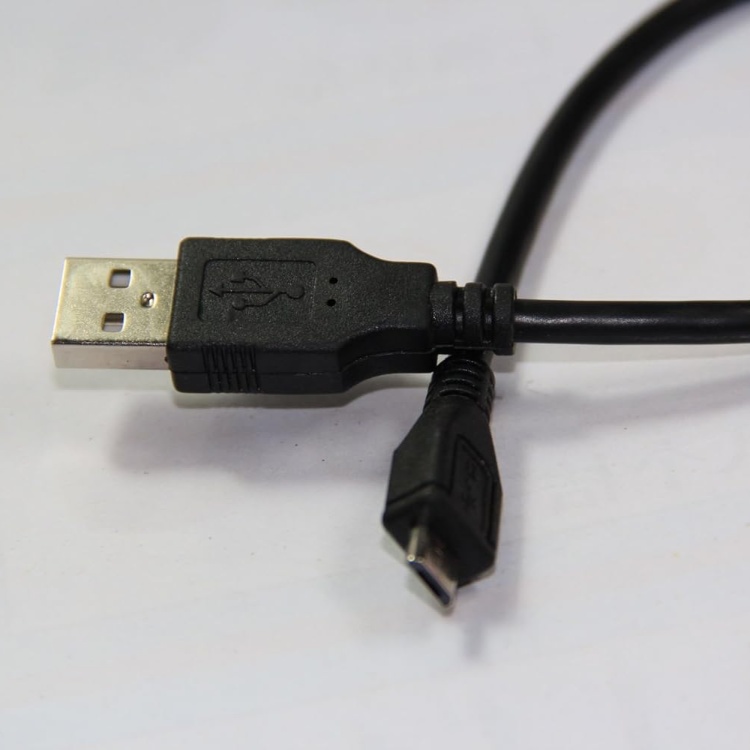

   • ​Compatibility: Standard GigE or USB cables connect directly from camera to server port. Software drivers (provided by the camera vendor or standards bodies) handle the communication protocol.
   • ​Advantages: Eliminates need for frame grabbers in many cases, simpler setup, standardized protocol, widely compatible. Bandwidth limitations exist (GigE typically max 1 Gbps per port, USB3 Vision up to ~5 Gbps per port, newer versions faster).
   • ​AI Suitability: Well-suited for lower-resolution/high-speed cameras or applications where moderate latency is acceptable. Faster variants (10GigE, USB3 Gen 2, USB4) are increasingly viable for higher resolutions/framerates.
4. ​Edge Processing: Reducing Cable Dependency
   • ​Concept: Perform initial vision processing or even AI inference right on the camera or on a small embedded device near the camera (an “edge” device).
   • ​Output: Instead of raw pixel data, the camera/edge device sends processed results (e.g., metadata, coordinates, classifications) or potentially compressed video streams.
   • ​Cabling: This processed data requires significantly less bandwidth. Connection to the central AI system can often use standard GigE or even Wi-Fi, bypassing the need for ultra-high-speed vision cables over long distances.

Key Compatibility Checklist for AI Integration:

1. ​Identify Camera Interface: Camera Link? CoaXPress? GigE Vision? USB3 Vision? MIPI?
2. ​Identify AI System Interfaces: Available PCIe slots? USB Type/Version? GigE Port Speed/Capabilities? Other ports?
3. ​Match Interfaces Directly: If camera uses GigE Vision/USB3 Vision and AI system has matching ports, standard cables usually suffice.
4. ​Check Need for Frame Grabber: Mandatory for Camera Link, CoaXPress (unless using an edge solution). Does your AI server have free compatible PCIe slots? (e.g., x4, x8 lane).
5. ​Investigate Converters Cautiously: Only if frame grabbers aren’t feasible. Verify latency, bandwidth, and driver support impact.
6. ​Consider Bandwidth & AI Needs: Will raw high-res/high-speed video swamp the chosen connection (cable + interface)? Does edge pre-processing make sense?
7. ​Verify Software Stack: Ensure drivers for the frame grabber/converter/camera are compatible with the AI software environment (OS, frameworks like TensorFlow/PyTorch, Vision SDKs).
