Machine Vision Cable Pressure Ratings: Why They Matter & Require...

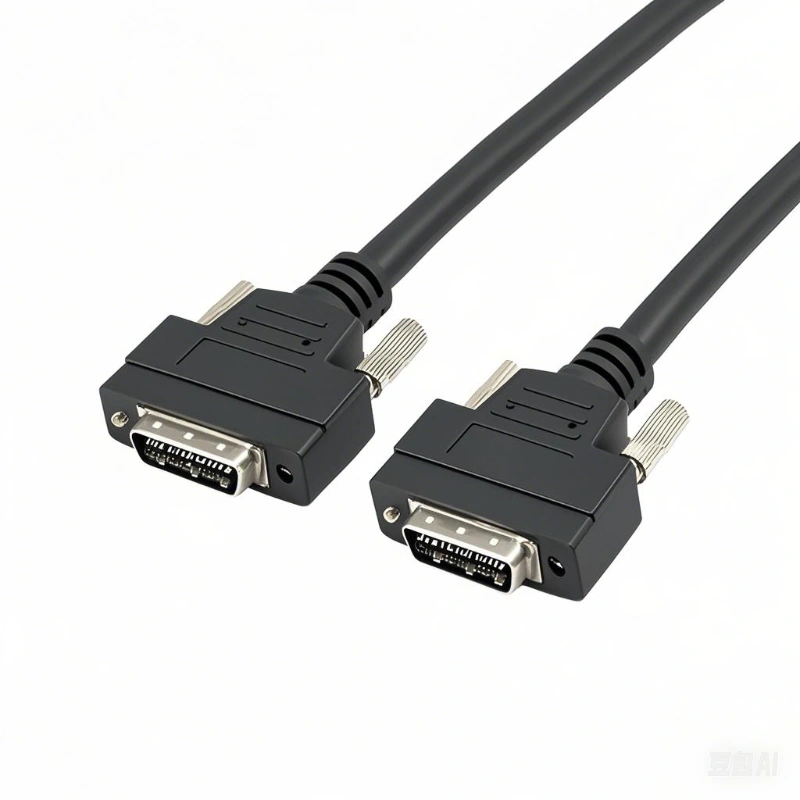

Machine vision systems are often deployed in demanding industrial environments. While factors like data integrity and flex life get significant attention, the pressure resistance of vision cables is a critical, yet sometimes overlooked, factor that directly impacts system reliability and longevity. Understanding pressure rating requirements helps prevent costly downtime and cable replacements.

​Why Pressure Ratings Matter for Machine Vision Cables​

Machine vision cables face various forms of physical pressure during their operational life:

1. ​Crush Loads:​​ Heavy machinery rolling over cables on the factory floor, items falling onto cables, cables pinched in clamps or between moving parts, or even tight bundling.
2. ​Impact Loads:​​ Sudden shocks from dropped tools, impacts from passing equipment like forklifts or AGVs, or vibrations transmitted through machinery.
3. ​Constant Pressure:​​ Cables routed within cable carriers (energy chains) experience constant pressure against the carrier guides and other cables. Cables under heavy stationary equipment also suffer constant pressure.
4. ​Pinch Points:​​ Where cables enter control cabinets, pass through glands, or transition from fixed to moving parts.

Failure due to inadequate pressure resistance can lead to:

• Insulation rupture and short circuits.
• Shielding damage leading to electromagnetic interference (EMI) issues.
• Conductor breakage causing signal loss or intermittent failures.
• Jacket damage exposing internal components to contaminants or moisture.

​Key Pressure Rating Standards & Terms​

Pressure ratings aren’t always stated as explicitly as IP ratings, but these concepts and standards are crucial:

1. ​Crush Resistance (ISO 60204-1 / IEC 60204-1):​​ This standard often references cable suitability for industrial environments. While it doesn’t give a single “crush rating,” it implies cables should withstand typical industrial stresses. Many quality industrial cable manufacturers test crush resistance per ​ISO 60068-2-75 or IEC 60068-2-75.
   • ​Common Test:​​ Apply a specific force (e.g., 750 N) with a defined pressure foot geometry for a set duration (e.g., 1 minute) to a section of cable.
   • ​Pass Criteria:​​ The cable insulation should not rupture, and conductors should not short circuit during or after the test. High-quality vision cables are often rated to withstand ​750 N to 1500 N​ crush force, with some ruggedized variants exceeding ​3000 N or even 5000 N. For perspective, a standard truck tire exerts roughly ​15,000 N​ of force.
2. ​Impact Resistance (IEC 60068-2-75 / ISO 60068-2-75):​​ Tests the cable’s ability to withstand sudden shocks (e.g., a dropped tool or kicked object).
   • ​Common Test:​​ A defined weight (striker) is dropped from a specific height onto the cable sample.
   • ​Pass Criteria:​​ Similar to crush resistance – no insulation rupture or short circuits. Good vision cables typically handle impacts of ​1-5 Joules​ (e.g., a 500g striker falling 0.5m = ~2.45 Joules).
3. ​Conformance to Cable Carrier Specifications (e.g., Chainflex®):​​ Cables specifically designed for continuous flexing in cable carriers (drag chains) undergo rigorous testing.
   • ​Internal Pressure:​​ These cables experience significant pressure as they slide against the carrier guides and each other during movement cycles. Manufacturers perform millions of flex cycles under load to ensure jacket integrity and low coefficient of friction to minimize internal pressure.
   • ​Crush in Carrier:​​ Carriers themselves can exert lateral pressure on bundled cables. Cable carrier compatible cables are reinforced to handle this constant side load.
4. ​IP Rating Considerations (IEC 60529):​​ While primarily for ingress protection (dust & water), IP ratings indirectly relate to pressure:
   • ​IP6X (Dust Tight):​​ Requires resistance to significant dust pressure differentials and fine dust entry.
   • ​IP67, IP68, IP69K (Water Resistance):​​ Achieved through a tight jacket, robust strain relief at connectors, and precise overmolding. Cables rated IP67/IP68/IP69K inherently have jackets and seals capable of withstanding significant external pressures and forceful water jets (especially IP69K). These jackets also offer better inherent crush resistance than low-IP-rated cables.

​Material and Construction Influence​

• ​Jacket Material:​​ Thermoplastic Polyurethane (PUR) is generally superior to Polyvinyl Chloride (PVC) in crush, impact, and abrasion resistance, while also offering better chemical and oil resistance. TPEs (Thermoplastic Elastomers) also offer good durability.
• ​Shielding:​​ Highly effective braided shielding (e.g., tinned copper) provides better mechanical protection (contributing to crush resistance) and EMI performance compared to simple foil shielding.
• ​Inner Construction:​​ Filling materials, optimized stranding of conductors, and sub-component jacketing all contribute to resisting internal deformation under external pressure.
• ​Strain Relief:​​ Robust strain relief (boot) at connectors (especially M8/M12) is essential to prevent jacket tearing or conductor pull-out where pressure concentrates at connection points.

​Application-Specific Requirements Summary​

​Selecting the Right Cable: Key Considerations​

1. ​Assess the Environment:​​ Map out all potential sources of pressure: rolling equipment, foot traffic, pinch points, overhead hazards, vibration sources, washing processes.
2. ​Prioritize Jacket Material:​​ Choose PUR jacket for demanding environments requiring high crush, impact, abrasion, and chemical resistance.
3. ​Demand Rated Connectors and Strain Relief:​​ Ensure connectors (especially M8/M12) have robust metal housings and effective, wide-angle strain relief boots. Overmolded connectors offer the best seal and relief.
4. ​Seek Manufacturer Specifications:​​ Don’t rely solely on generic IP ratings. Look for documented crush resistance values (e.g., N force) and impact resistance tests. Reputable manufacturers provide these details.
5. ​Consider Cable Carrier Compatibility:​​ If the cable moves in a carrier, use a cable explicitly designed and tested for that purpose. Standard cable will fail prematurely.
6. ​Factor in Temperature:​​ Extreme temperatures can affect jacket pliability and thus its resistance to pressure. Ensure the cable’s temperature range suits the environment.

​Conclusion​

Pressure rating requirements are a vital but often underestimated aspect of machine vision cable selection. Ignoring crush resistance, impact resilience, and the constant pressures within cable carriers leads to premature failure, signal degradation, and unplanned downtime. By understanding the specific pressures present in your application environment, prioritizing robust construction (especially PUR jackets and strong strain relief), demanding documented performance data from suppliers, and selecting cables designed for the specific challenge (like carrier-rated cables), you ensure your machine vision system delivers reliable, high-integrity performance over the long term. Investing in cables with proven pressure resistance translates directly into reduced maintenance costs and increased production uptime.
