Machine Vision Cables: Analog vs Digital – The Critical Connect...

Selecting the right cable is fundamental to a machine vision system’s performance, reliability, and longevity. The fundamental divide lies between analog and digital technologies. Understanding their differences isn’t just technical trivia – it’s crucial for system design, troubleshooting, and achieving optimal results. Let’s break down the key distinctions:

1. The Core: Signal Transmission

Analog Cables:
- Transmission: Carry continuously varying electrical voltages that directly represent the intensity of light hitting each pixel in the camera’s sensor. A brighter spot creates a higher voltage.
- Signal Nature: Continuous waveform.
- Vulnerability: Highly susceptible to electromagnetic interference (EMI), radio frequency interference (RFI), ground loops, and signal degradation (attenuation) over distance. Noise directly corrupts the image data.
- Compensation: Requires features like shielding (coaxial cables – RG-59 being common) and sometimes twinaxial designs to mitigate interference, but perfection is hard to achieve.
Digital Cables:
- Transmission: Carry discrete binary data (0s and 1s), representing the pixel values. The image data is encoded digitally before being sent down the cable.
- Signal Nature: Packets of discrete data bits.
- Vulnerability: Significantly more immune to noise. As long as the signal level at the receiver can be correctly interpreted as a ‘0’ or ‘1’, the data remains perfect. Noise has to be extremely severe to flip a bit and cause an error. Protocols often include error detection/correction.

2. Image Quality & Fidelity

Analog Cables:
- Degradation Inevitable: Suffers from inherent signal degradation (noise, crosstalk, attenuation). This manifests as ghosting, smearing, reduced sharpness, color inaccuracies, flicker, and general loss of detail.
- Resolution Limit: Quality degrades rapidly as resolution and frame rate increase. Limited in supporting very high-resolution cameras effectively.
- Consistency: Image quality can fluctuate based on cable length, environment, and interference levels.
Digital Cables:
- Pixel-Perfect Integrity: When transmitted correctly (within cable specs), delivers the exact digital data generated by the camera sensor to the frame grabber/PC. No inherent degradation of the image data.
- High Resolution/Framerate: Designed for the demands of modern high-resolution, high-speed cameras. Protocols like Camera Link HS, CoaXPress, or 10GigE handle massive data rates.
- Consistency: Offers stable, predictable image quality regardless of cable length (within spec limits) and is far less affected by noisy environments.

3. Maximum Cable Length

Analog Cables:
- Short Runs: Practical lengths are typically limited to 10-30 meters (approx. 33-100 ft), even with high-quality coaxial cable. Beyond this, signal degradation makes images unusable for demanding machine vision.
- Impact: Limits system design flexibility, especially for large factory floors.
Digital Cables:
- Vastly Longer: Supported lengths vary greatly by protocol:
  - USB3 Vision: Typically ~5-10 meters passive, extendable with active cables/hubs.
  - GigE Vision (GigE): Up to 100 meters with standard Cat5e/Cat6 cable.
  - 10GigE Vision: Up to 100 meters with Cat6a/Cat7.

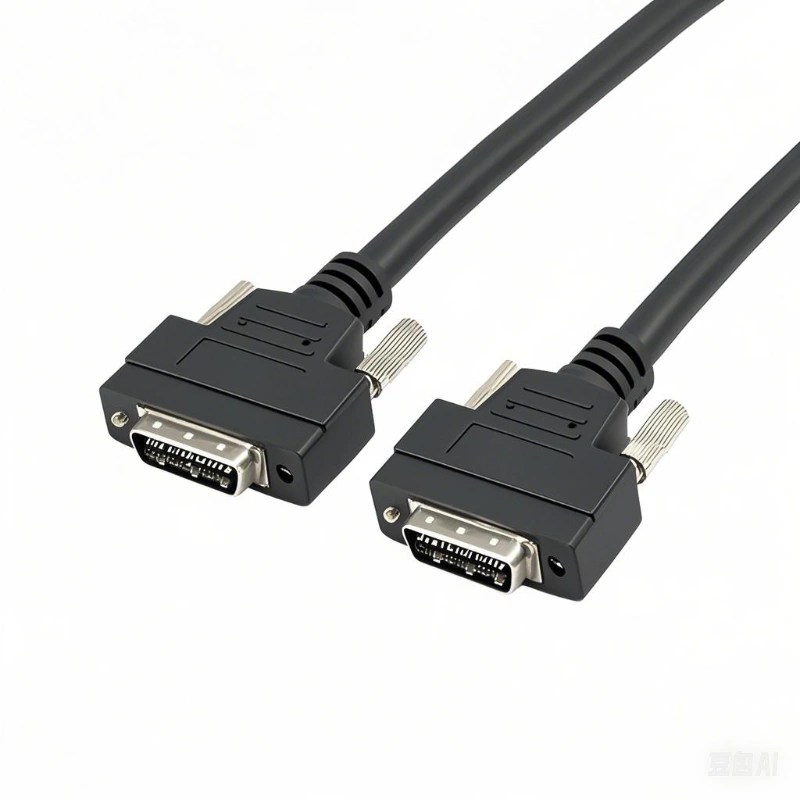

  - Camera Link: Typically 5-10 meters (requires specific cabling).
  - CoaXPress (CXP): Up to 40-100+ meters with coaxial cable (depends on data rate/tier).
  - Camera Link HS: Supports fiber optic cables, enabling kilometer-scale lengths.
- Impact: Enables much more flexible system layouts.

4. Data Bandwidth & Speed

Analog Cables:
- Fixed & Limited: Bandwidth is physically constrained. High-resolution/high-frame-rate transmission leads to severe degradation.
- Bottleneck: Often becomes the limiting factor for system performance.
Digital Cables:
- High & Defined: Protocols have specific bandwidth capabilities (e.g., USB3 Vision ~400+ MB/s, GigE Vision ~100 MB/s, 10GigE ~1 GB/s, CXP-6 ~6.25 Gbps/lane). High-speed variants exist (CXP-12, CLHS, 25/100GigE).
- Scalability: Multi-lane digital protocols (Camera Link: Base/Med/Full/80-bit, CoaXPress using multiple coax lines) allow massive total bandwidth increases.
- Enables Performance: Supports the data demands of high-res, high-speed cameras.

5. Power Delivery (Power over Cable)

Analog Cables:
- Rare/Ad-hoc: Standard analog coaxial cables do not deliver power. Separate power cables are required, increasing wiring complexity. Some specialized hybrid cables exist but are less common.
Digital Cables:
- Standard Feature: Protocols like GigE Vision (PoE/PoE+), USB3 Vision, and PoCXP (Power over CoaXPress) support delivering power to the camera over the same cable carrying data. This greatly simplifies installation, reduces cabling, and lowers costs. (Major Practical Advantage!)

6. System Complexity & Cost

Analog Cables:
- Component Needs: Typically require dedicated frame grabbers installed in a PC to digitize the analog signal before processing. Adds cost and complexity.
- Cable Cost: The cables themselves are often cheaper per meter than high-end digital cables (e.g., simple coax vs CLHS fiber).
Digital Cables:
- Component Needs:
  - Interface Cards: Protocols like Camera Link, CoaXPress, and some high-perf CLHS often still require specific frame grabbers (increasing cost/complexity).
  - Direct Connection: Protocols like GigE Vision, USB3 Vision, and MIPI often allow direct connection to the PC’s built-in ports (NIC/USB), reducing the need for a separate frame grabber (though dedicated NICs/PCIe cards improve performance).
- Cable Cost: Cables vary (e.g., Cat6 is cheap, multi-coax CXP or CLHS fiber is expensive).
- TCO Consideration: While some digital cabling has a higher upfront cost per meter, the simplified installation (PoC, single cable), longer runs, higher reliability, and reduced need for frame grabbers can lower the overall system cost and total cost of ownership (TCO).

7. Future-Proofing & Modern Relevance

Analog Cables: Primarily legacy technology. Rarely chosen for new machine vision systems due to inherent limitations in resolution, speed, noise immunity, and flexibility. Only relevant for maintaining very old installations or extremely simple, low-cost, low-performance applications.
Digital Cables: Represent the present and future of machine vision. Essential for leveraging modern camera capabilities, ensuring robust performance in industrial environments, and building scalable systems.

The Verdict: Digital Dominance for Machine Vision

While analog cables served a purpose historically, the advantages of digital machine vision cables – noise immunity, pixel-perfect image quality, long-distance capability, Power over Cable, high bandwidth, and support for modern cameras – make them the unequivocal choice for virtually all new machine vision systems. They offer the reliability, performance, and flexibility essential for industrial automation success.

Choosing the right digital protocol (GigE Vision, USB3 Vision, CoaXPress, Camera Link HS, etc.) then becomes the critical next step, based on your specific bandwidth, distance, and power requirements.
