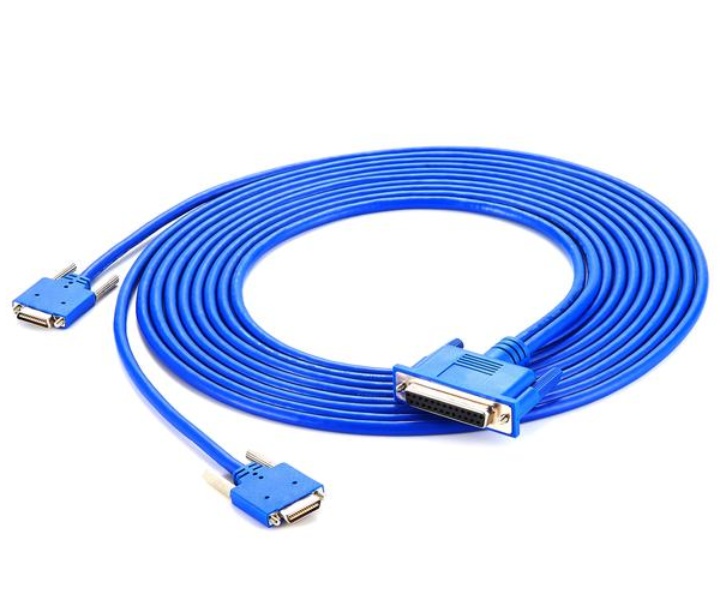

Machine Vision Systems Cabling: Technical Analysis
I. Structural Composition
Modern machine vision cables are engineered with precision to meet demanding industrial requirements. Key structural components include:
Conductors
High-purity copper or silver-plated copper wires form the core, optimized for minimal signal attenuation. Twisted-pair or coaxial configurations reduce electromagnetic interference (EMI).
Insulation Layers
Fluorinated ethylene propylene (FEP) or polyurethane insulation provides dielectric stability while maintaining flexibility for dynamic applications.
Shielding
Multi-layer shielding combines aluminum foil and braided copper mesh (typically 85% coverage minimum) to combat EMI/RFI interference in electrically noisy environments.
Outer Jacket
Abrasion-resistant materials like PUR (polyurethane) or PVC protect against oils, chemicals, and mechanical stress. Industrial-grade variants feature reinforced strain relief.
Connectors
Standardized interfaces (e.g., M12, M8, or Hirose connectors) with gold-plated contacts ensure reliable mating cycles. IP67-rated versions offer dust/water resistance.
II. Functional Characteristics
Machine vision cables perform several mission-critical roles:
High-Speed Data Transmission
Supporting protocols like Camera Link, CoaXPress, or GigE Vision, these cables enable transfer rates up to 12.5 Gbps (for CoaXPress 2.0) with latency under 1 μs.
Power Delivery
Many cables integrate Power-over-Coax (PoC) or Power-over-Ethernet (PoE) capabilities, simplifying system architecture by combining power and data lines.
Signal Integrity Maintenance
Impedance matching (typically 50Ω or 75Ω) and low capacitance (<100 pF/m) preserve image fidelity across cable lengths up to 100 meters.
Environmental Resilience
Operating in temperatures from -40°C to 105°C, industrial cables withstand repeated flexing (20+ million bend cycles) and vibration (up to 20g acceleration).
Synchronization Support
Dedicated lines for trigger signals and encoder feedback enable precise timing coordination in multi-camera setups.
III. Application-Specific Variations
Robotic Vision Cables
Torsion-resistant designs with chain-suitable jackets for continuous motion in robotic arms.
Medical Imaging Cables
EMI-optimized versions compliant with IEC 60601-1 for MRI-compatible systems.
3D Vision Cables
Multi-conductor bundles combining power, data, and synchronization lines for stereo camera rigs.
IV. Emerging Trends
Recent advancements include:
Lightweight composite materials reducing cable weight by 30%
Fiber-optic hybrid cables enabling 25 Gbps+ transmission
Smart cables with embedded diagnostics for predictive maintenance.
