What are the Industry Standards for Machine Vision Cables

When building a machine vision system – whether it’s for factory automation, medical imaging, or scientific research – cameras, lenses, and software get most of the attention. But there’s a critical, often overlooked component silently working behind the scenes: the cables. Choosing the right machine vision cables isn’t just about plugging things in; it’s about ensuring your system performs reliably, captures high-quality images consistently, and avoids costly downtime. That’s where industry standards come in.

Why Do Standards for Machine Vision Cables Exist?

Imagine if every camera manufacturer used completely different connectors, signal types, and protocols. Integrating components would be a nightmare! Industry standards solve this problem by defining:

Performance: How much data can the cable carry (bandwidth)? How far can the signal travel reliably? How resistant is it to electrical noise?
Compatibility: What connectors are used? What are the electrical signaling requirements? How is communication managed between the camera and the computer (frame grabber/software)?
Reliability: What are the minimum requirements for durability, shielding, and environmental resistance (like IP ratings)?
Interoperability: Can you confidently use a cable from Vendor A with a camera from Vendor B and a frame grabber from Vendor C?

Using cables built to recognized industry standards gives you peace of mind. You know they’ll work as expected, deliver the necessary performance for your application, and be widely available.

Key Industry Standards for Machine Vision Cables

Several major standards govern the interfaces used in machine vision, each defining the specifications for the cables required:

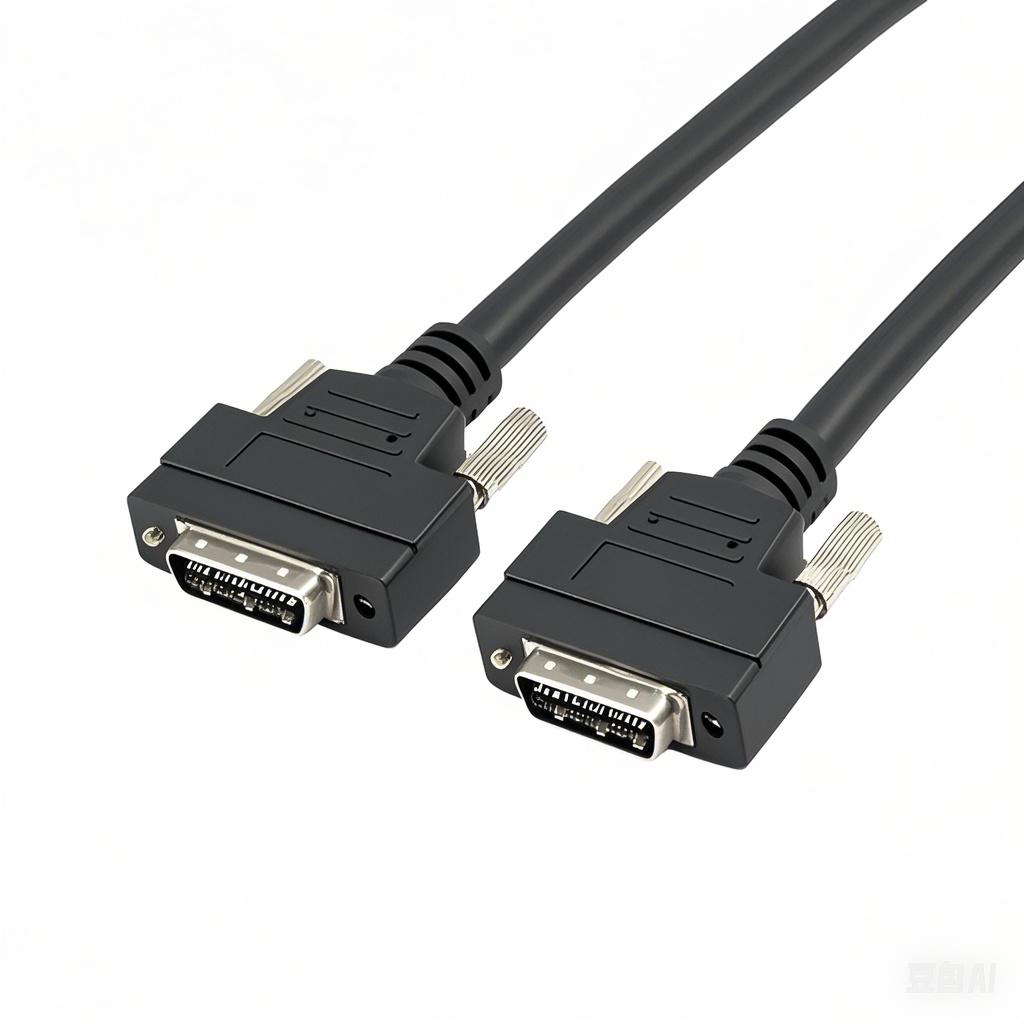

Camera Link HS (CLHS):
- Purpose: Designed for very high-speed data transmission, often used in high-resolution, high-frame-rate applications like semiconductor inspection or high-speed sorting.
- Cable Standard: Primarily uses CX4 or SFP+ based cables (often fiber optic, especially for longer distances). CX4 cables look similar to InfiniBand cables but are specifically defined by the CLHS standard for copper links.
- Key Cable Features: High bandwidth (multiple Gbps/lane), support for long distances (especially fiber), defined connector types (SFP+, CX4), strict specifications for signal integrity.
CoaXPress (CXP):
- Purpose: Leverages familiar coaxial cable technology for high-speed data, power delivery (Power over CoaXPress – PoCXP), and control signals over a single cable. Popular for its simplicity and reach.
- Cable Standard: Defines coaxial cables with specific impedance (75 Ohm), shielding requirements, and connector types (typically BNC or DIN 1.0/2.3). Different CXP versions (CXP-6, CXP-12, etc.) specify the data rate per lane.
- Key Cable Features: Single-cable solution (data + power), robust and familiar coaxial construction, good noise immunity, defined cable grades for different lengths/performance levels.
USB3 Vision:
- Purpose: Built on the ubiquitous USB standard, offering a good balance of speed, cost-effectiveness, and ease of use for many industrial applications.
- Cable Standard: Based on the USB 3.x specification (commonly SuperSpeed USB 5Gbps or 10Gbps). Requires actively shielded USB 3.x cables designed for industrial environments, not just consumer-grade USB cables.
- Key Cable Features: Standard USB Type-A, Type-B, Micro-B, or USB-C connectors (depending on camera), must have high-quality shielding, often specified for flexibility and durability in factory settings. Length is limited compared to others (typically <5m for reliable high speed).
GigE Vision:
- Purpose: Uses standard Ethernet networking technology (Gigabit Ethernet or faster) for data transmission, enabling long cable runs and network flexibility. Very common across many vision applications.
- Cable Standard: Based on IEEE 802.3 Ethernet standards (Cat5e, Cat6, Cat6a, Cat7 for higher speeds). Requires industrial-grade, shielded twisted-pair (STP or S/FTP) Ethernet cables.
- Key Cable Features: Standard RJ45 connectors, robust shielding essential for noise immunity in industrial settings, defined cable categories for speed/distance (e.g., Cat6a for 10GBase-T up to 100m). PoE (Power over Ethernet) support is common.

Beyond the Interface: Other Important Cable Considerations

While the interface standard defines the core electrical and protocol requirements, cables must also withstand the environment:

IP Ratings (Ingress Protection): Standards like IP67 or IP68 define protection against dust and water. Crucial for washdown environments or outdoor use.
Industrial Durability: Cables need robust jacketing (e.g., PUR – Polyurethane) resistant to oils, chemicals, abrasion, and repeated flexing. Strain relief at connectors is vital.
EMC/Shielding: High-quality, continuous shielding (braided shield + foil is common) is non-negotiable in electrically noisy industrial settings to prevent image corruption. Standards often specify minimum shielding effectiveness.
Flexibility: For applications involving robots or continuous motion, highly flexible cables designed for millions of flex cycles are essential.

Choosing the Right Cable: It’s Not Just the Standard

Knowing the standard (CLHS, CXP, USB3 Vision, GigE Vision) your camera and interface require is the first step. But within that standard, cable quality varies hugely. Here’s what to do:

Check Your Camera & Frame Grabber Manuals: They will explicitly state the required interface standard and often recommend specific cable types or vendors.
Prioritize Certified Cables: Many standards bodies (like the CLHS Consortium, CoaXPress Alliance, USB-IF, AIA for GigE Vision/USB3 Vision) offer certification programs. Cables from reputable manufacturers that pass these certifications are your safest bet.
Match the Cable to the Environment: Need IP67? Continuous flex? Chemical resistance? Specify this to your cable supplier.
Don’t Skimp on Quality: Cheap, uncertified cables are a false economy. They are the leading cause of intermittent faults, image dropouts, and system failures in vision applications. Invest in quality cables designed and built for industrial machine vision.
