What Is the Maximum Bandwidth of High-Speed Machine Vision Cables?

Machine vision systems are the “eyes” driving automation, inspection, and analysis across countless industries – from manufacturing robots performing delicate assembly to medical scanners detecting microscopic flaws. At the heart of these systems lies the critical, yet often overlooked, component: the cable connecting the camera to the processing unit. As camera resolutions skyrocket, frame rates increase, and multi-sensor systems become common, demand for bandwidth explodes. So, what’s the maximum bandwidth achievable with modern high-speed machine vision cables? The answer is complex and constantly evolving.

The Cutting Edge: Pushing the Limits (100Gbps+ with Fiber)

The current practical peak for the highest-performance commercially available machine vision cable technologies resides firmly in the realm of fiber optics:

Active Optical Cables (AOCs) & Fiber Optic Solutions: These represent the pinnacle. Leveraging high-speed transceivers and advanced fiber types (like OM4/OM5 multimode or OS2 single-mode), these solutions can achieve staggering speeds:
- 100 Gbps: Readily achievable today using standards like 100GBASE-SR4 over multimode fiber or coherent optics over single-mode fiber for longer distances.
- 200 Gbps: Implementations using standards like 200GBASE-DR4 or 200G-FR4 are emerging for machine vision applications requiring extreme throughput.
- 400 Gbps and Beyond: While primarily deployed in massive data centers currently, standards like 400GBASE-SR8, FR4, or LR4 are starting to appear on the horizon for ultra-high-end vision applications involving multi-camera aggregation or incredibly high-resolution/high-speed scanning. Therefore, the current theoretical and practical maximum for dedicated, specialized machine vision cabling falls within the 100Gbps to 400Gbps+ range using fiber.

Beyond Fiber: The Copper Contenders and Their Limits

While fiber offers the ultimate ceiling, copper solutions remain vital, balancing performance and cost effectively:

Camera Link HS (CLHS): Designed explicitly for high-speed vision. The latest generation (using four differential pairs via CX4/Quadrax connectors) can reach up to 80 Gbps. This requires advanced modulation schemes (like PAM4) and very high-quality, short-length copper cabling (or fiber conversion modules). Real-world deployments often see lower speeds.
CoaXPress (CXP): The “Over Copper” champion. Current top-tier configurations use CXP-12, combining 12 individual coaxial links. Max theoretical aggregate bandwidth is 50 Gbps (12 links x ~4.17 Gbps each, using PAM2/NRZ signaling). Higher speeds per lane using PAM4 are possible in future revisions. Bandwidth decreases significantly with cable length.
USB Vision: USB 3.x dominates the low-to-mid range. USB 3.2 Gen 2 (formerly USB 3.1 Gen 2) offers 10 Gbps. USB4 pushes to 20 Gbps (Gen 2×2) or 40 Gbps (Gen 3×2), requiring USB Type-C connectors and cables certified for high speeds (Gen3 cables required for 40Gbps).
GigE Vision (Ethernet): Gigabit Ethernet (1 Gbps) is common, but 10 GigE Vision (10 Gbps) is increasingly standard. Emerging speeds include 25 GbE and 100 GbE. While 100GbE uses fiber primarily for the trunk links, short copper runs with specialized cables (like QSFP28 Direct Attach Copper – DAC) can technically support 100Gbps, but integration into standard GigE Vision camera interfaces at this speed isn’t yet widespread. Current practical copper Ethernet max for common vision cameras is 10 Gbps, with 25Gbps emerging.

Key Factors Dictating Real-World Bandwidth (It’s Not Just the Number!)

That headline “max bandwidth” number is just the starting point. Your achievable speed depends critically on several factors:

Cable Construction & Quality: Shielding effectiveness, conductor quality/material (e.g., pure copper vs. copper-clad aluminum), twist ratios, impedance control – all dramatically impact signal integrity and achievable speed at distance.
Interface & Standard: The maximum possible is capped by the specific camera interface (CLHS, CXP-12, USB4 Gen 3×2, 100GbE).
Transmission Distance: Bandwidth decreases significantly with distance for copper cables due to signal attenuation and distortion. Fiber maintains high bandwidth over vastly longer distances (kilometers vs. meters).

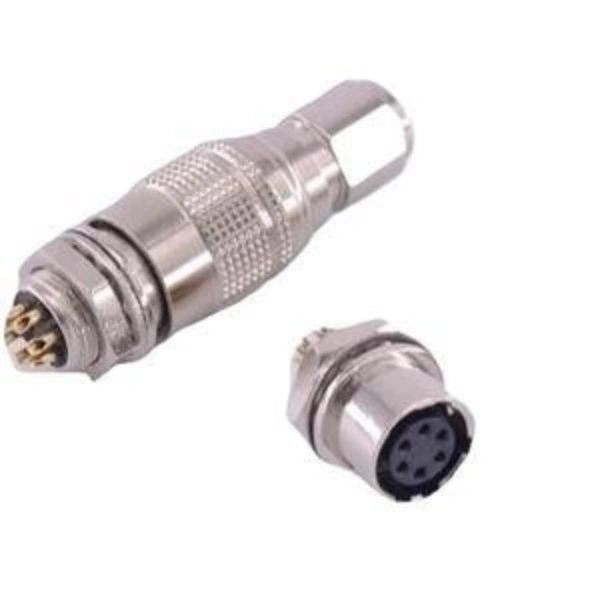

Connectors: High-frequency performance demands precise, high-quality connectors specific to the protocol (CX4/Quadrax for CLHS, BNC for CXP, QSFP+/QSFP28 for high-speed Ethernet/fiber). Poor connections cripple bandwidth.
Electromagnetic Interference (EMI): Noisy industrial environments require robust shielding to prevent data corruption that effectively lowers throughput. Fiber is naturally immune.
Data Encoding: Advanced modulation (like PAM4) transmits more data per signal cycle but requires better cables and is more sensitive to noise and distance limitations compared to simpler encoding (NRZ/PAM2).
Cable Bundling & Bend Radius: Tight bends or bundling many cables together can cause crosstalk or signal degradation, reducing available bandwidth.

So, What Bandwidth Do You Need? Choosing Wisely

Selecting a cable isn’t about chasing the highest possible number, but finding the optimal cost/performance/reliability solution for your specific vision task:

Assess Requirements: Calculate your minimum bandwidth:
- Bandwidth (bps) = (Image Width (pixels) x Image Height (pixels) x Bits per Pixel x Frames per Second)
- Add overhead (typically 10-20%).
- Add headroom for future needs!
Match Technology to Bandwidth/Distance:
- Extreme Bandwidth / Long Distance: Fiber Optic (AOC, Fiber) – 100Gbps to 400Gbps+
- Very High Bandwidth / Short-Medium Distance: Camera Link HS – Up to 80 Gbps, CoaXPress (CXP-12) – 50 Gbps (short runs)
- High Bandwidth / Cost-Effective: USB4 – 40 Gbps (short cables), 10 GigE Vision – 10 Gbps, 25 GigE Vision – 25 Gbps
- Mid-Range: USB 3.2 Gen 2 – 10 Gbps, GigE Vision – 1 Gbps
Prioritize Quality & Shielding: Invest in high-quality, properly shielded cables suitable for the harsh industrial environments where vision systems operate. Don’t skimp on connectors!
Consider Distance: Be realistic about the distance between the camera and the host. Copper performance degrades quickly beyond 5-15m for most high-speed protocols (except some CXP configurations). Fiber excels here.
Factor in Total Cost: Include connectors, interface cards, installation complexity, and any required repeaters/extenders. Fiber often has higher upfront costs but lower lifetime costs for demanding setups.

Conclusion: It’s High, But Context is King

The absolute maximum bandwidth for high-speed machine vision cables today is well over 100 Gbps, achievable only with state-of-the-art fiber optic solutions like Active Optical Cables. For the more widespread copper-based protocols, Camera Link HS leads at up to 80 Gbps, followed by CoaXPress at 50 Gbps (CXP-12) and USB4 at 40 Gbps.

However, real-world performance is never simply the headline number. Distance, cable quality, connectors, EMI, and encoding schemes all dictate the actual bandwidth you can reliably harness. Always calculate your minimum requirement based on camera specs and application needs, then choose a robust cable solution offering significant headroom. As cameras continue to evolve, pushing pixel counts and frame rates, bandwidth demands will only intensify, ensuring that cable technology remains a critical frontier in machine vision performance. Select wisely!
