Why Do Machine Vision Cables Require Shielding for Noise Reduction? T...

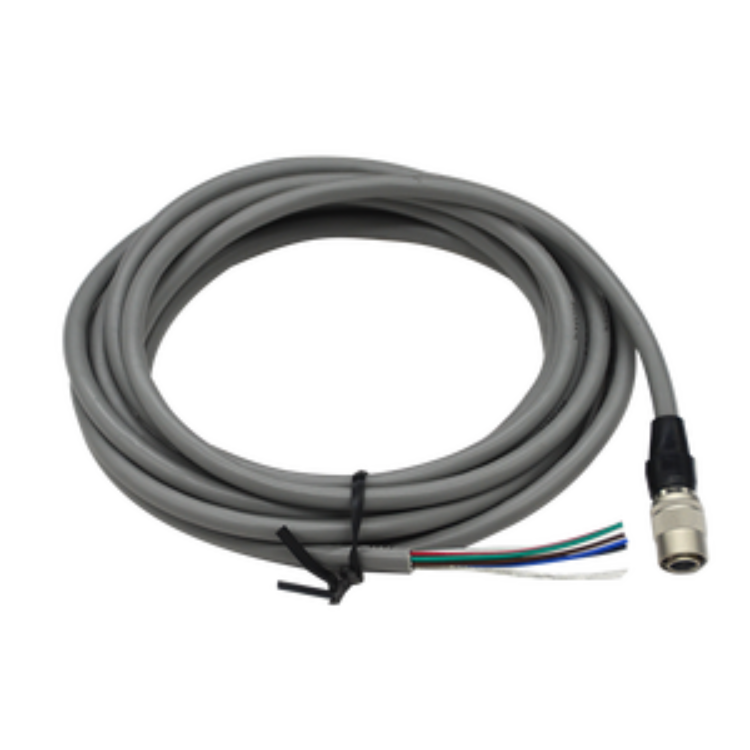

In the precise world of machine vision, where cameras capture details invisible to the human eye, every component plays a vital role. One unsung hero, often overlooked but fundamentally critical, is the shielding within your camera cables. Why is this metal wrapping so essential? The answer lies in combating a silent enemy: ​electrical noise.

Simply put, ​machine vision cables require shielding to protect delicate image signals from external electrical interference, ensuring the system “sees” clearly and reliably.

The Noisy World Around Us: Sources of Interference

Our industrial environments are electrically noisy places. Think about these common culprits:

1. ​Motors & Drives: AC/DC motors, variable frequency drives (VFDs), and servo controllers generate significant electromagnetic interference (EMI).
2. ​Switching Power Supplies: Found in almost every piece of modern electronics, they can emit high-frequency noise.
3. ​Radio Frequency (RF) Sources: WiFi routers, radios, and cell phones broadcast signals that can be picked up by cables.
4. ​Nearby High-Power Cables: Power cables carrying large currents create strong electromagnetic fields.
5. ​Static Electricity & Sparks: Common in manufacturing, especially with moving parts.
6. ​Other Digital Equipment: Computers, PLCs, and even adjacent signal cables can cross-talk.

Without shielding, your vision cable acts like an antenna, readily picking up this electrical “noise” pollution. This noise contaminates the pristine video signals travelling from your camera to the frame grabber or processor.

How Shielding Works: Your Signal’s Invisible Armor

Think of cable shielding as a protective metal cage surrounding the delicate inner signal wires. It primarily functions in two ways:

1. ​The Faraday Cage Effect: The conductive shield (often braided copper wire, spiral copper wire, or aluminum foil) encases the signal wires. When external electromagnetic fields hit the shield, they induce small currents on the shield itself, effectively “shorting out” the noise and preventing most of its energy from reaching the inner conductors.
2. ​Reflection & Absorption: The shield also reflects a significant portion of incoming electromagnetic waves. Some energy is absorbed and dissipated as heat within the shield material.

Effective shielding relies on the shield being ​properly grounded at least at one end (usually the controller/frame grabber end). This provides a safe, low-resistance path for the induced noise currents to flow into the ground system, away from your valuable image data.

The High Cost of Unshielded Vision Cables (Noise Consequences)

If your machine vision cable lacks adequate shielding or its shield is compromised (damaged, poorly grounded), electrical noise can wreak havoc:

1. ​Image Artifacts & Corruption: Expect to see:
   • ​Salt-and-Pepper Noise: Random bright/dark pixels scattered across the image.
   • ​Wavy Lines/Stripes: Often caused by mains AC interference (50Hz/60Hz hum).
   • ​Ghosting/Double Images: Signals reflecting due to impedance mismatches exacerbated by noise.
   • ​Overall Reduced Contrast & Clarity: Noise degrades fine details.
   • ​Frozen/Corrupted Frames: Severe noise can overwhelm the signal decoding.
2. ​Intermittent Faults & False Rejections: Noise can cause seemingly random communication errors or system lockups. This is a nightmare for troubleshooting, often leading to costly production downtime.
3. ​Inaccurate Inspections & Measurements: Blurry or noisy images directly translate to unreliable results. Good parts might be rejected, or defective parts might pass unnoticed.
4. ​Reduced System Stability & Reliability: A system plagued by noise issues is inherently less dependable and harder to validate.

In essence, ​noise introduced through the cable translates directly into errors in the vision system’s “perception.” For applications demanding micron-level precision or high-speed processing, shielding isn’t optional – it’s mission-critical.

Choosing the Right Shield: What Matters for Vision Cables

Not all shields are created equal. Key factors influencing effectiveness in machine vision applications:

1. ​Coverage (%): The higher the percentage of coverage (e.g., 85% braided copper), the less gaps exist for noise to leak through. Braided shields offer excellent flexibility and coverage.
2. ​Material: ​Copper (braid or spiral) is highly conductive and offers the best EMI protection. ​Aluminum foil (often with a drain wire) is lightweight and cost-effective for moderate environments but less robust and harder to terminate reliably. For machine vision, copper shields (especially braided) are generally preferred for superior performance.
3. ​Multiple Layers: Cables exposed to extreme noise might use a combined shield (e.g., aluminum foil + braided copper) for layered defense.
4. ​Termination & Grounding: The shield must be properly terminated to the connector shell, which then connects securely to the grounded chassis or designated ground point on the vision controller/frame grabber. Poor termination nullifies the shield’s benefits. Consult connector and controller manuals for correct grounding procedures.

Key Insight: The Higher the Bandwidth, the More Critical Shielding Becomes

High-resolution cameras (like 5MP, 10MP, or more) and high frame rates demand much higher cable bandwidths. This translates to signals operating at ​very high frequencies. Crucially, ​high-frequency signals are more susceptible to EMI and also radiate energy themselves, potentially causing interference to nearby equipment. Robust shielding is paramount for these demanding applications to prevent both inbound interference and outbound emissions.
