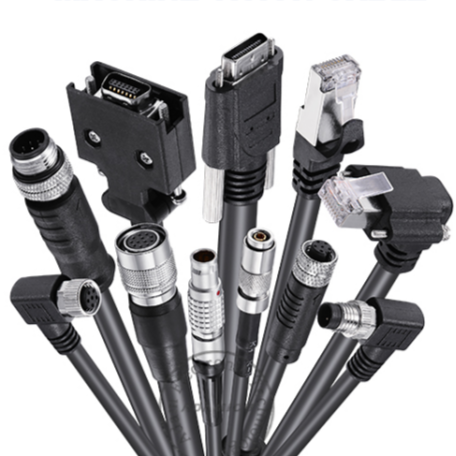

Why Shielded Cables Are Critical for Machine Vision Systems

The Threat of Electromagnetic Interference (EMI)
Industrial facilities are rife with EMI sources:

Motors and Drives: High-power machinery generates strong electromagnetic fields.
Wireless Devices: Wi-Fi routers, Bluetooth sensors, and radios emit RF signals.
Power Lines: Alternating currents create oscillating magnetic fields.

When unshielded cables are exposed to these disturbances, the electrical noise infiltrates the signal lines, causing:

Image distortion: Pixel errors, ghosting, or streaks in captured visuals.
Data packet loss: Critical information gaps during high-speed transfers.
System errors: False triggers or shutdowns due to corrupted signals.

For machine vision systems, such issues can lead to misaligned robotic arms, undetected product flaws, or costly production halts.

How Shielded Cables Work
Shielded cables are engineered with conductive layers that act as barriers against interference. Common designs include:

Foil Shielding: A thin aluminum or copper foil wrapped around conductors, effective against high-frequency EMI.
Braided Shielding: Interwoven metal strands (e.g., copper) providing robust protection across a broad frequency range.
Combination Shielding: Hybrid designs (e.g., foil + braid) for maximum coverage in extreme environments.

The shield works by two principles:

Reflection: Blocking external waves from penetrating the cable.
Absorption: Capturing and grounding unwanted currents through the shield’s conductive path.

Proper grounding of the shield is crucial. If not grounded, the shield can act as an antenna, amplifying interference.

Key Applications in Machine Vision

Automotive Manufacturing
In car plants, welding robots and conveyor belts generate intense EMI. Shielded cables connecting vision cameras ensure flawless inspection of welds, paint quality, and component alignment. For example, Tesla’s Gigafactories use shielded GigE Vision cables to maintain signal clarity in areas crowded with robotic arms and high-voltage equipment.
Semiconductor Fabrication
Microchip production demands nanometer-level precision. Shielded cables link inspection cameras to automated optical inspection (AOI) systems, where even minor signal noise could misidentify a microscopic defect. Fujitsu reported a 20% reduction in false positives after upgrading to shielded fiber optic cables in its semiconductor lines.
Food and Pharmaceutical Packaging
In hygienic facilities, shielded cables with IP67-rated connectors resist interference from ultrasonic cleaners and conveyor motors. They also prevent data corruption during high-speed label verification, ensuring compliance with strict regulatory standards.

The Cost of Neglecting Shielding
Companies that opt for unshielded cables to cut costs often face hidden expenses:

Downtime: Frequent system resets to address signal errors.
Rework: Correcting defects missed by vision systems.
Reputational Risk: Shipping faulty products due to undetected flaws.

A 2023 study by ABB Robotics found that unshielded cables caused 15% of machine vision failures in automotive plants, costing an average of $50,000 per hour in production delays.

Choosing the Right Shielded Cable
Not all shielded cables are equal. Consider these factors:

Environment: Heavy EMI zones may require double-shielded (e.g., STP) or triaxial cables.
Flexibility: Robots and AGVs need cables with flexible shielding that won’t crack during movement.
Standards: Look for certifications like IEC 61158 (industrial communications) or MIL-STD-1553 (military-grade shielding).

For long-distance setups, fiber optic cables with metallic shielding offer EMI immunity and high bandwidth.
